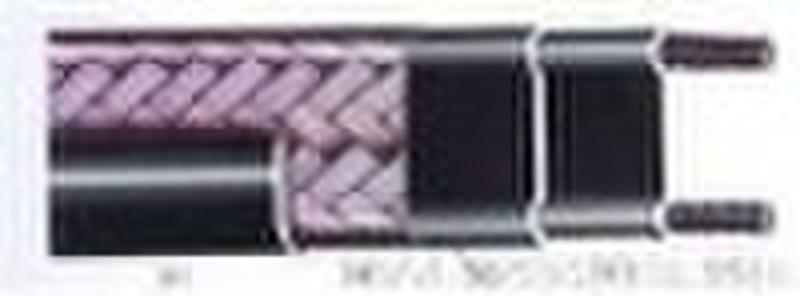

Self-regulating heating cable

Max .Maintenance Temp.( °C) 135 Max. Exposure Temp. (°C) 170 W /m T=10°C 35w-60W Max. Circuit Length (m) 80 Supply Voltages 110,220,380,36,24 Copper conductor 1.1mm2(7/0.36) Copper braid 0.12mm Minimum bend radius 25.4mm(20°C),35mm(-40°C) Chemical Resistance Anti-corrosion GBW-35-220GBW-40-220GBW-50-220GBW-60-220W /m T=10°C 35405060SpecificationJ/P/FPJ/P/FPJ/P/FPJ/P/FPWidth(mm)12/14/1512/14/1512/14/1512/14/15Thickness(mm)4/5/64/5/64/5/64/5/6Weight(mm)118/140/190118/140/190118/140/190118/140/190 Self-regulating heating cable GBW series The GBW family of self-regulating heating cables provides solutions for industrial insulation for tank, pipe and the gas translating pipeline where the temperature requirements is very high from 135 to 170 deg C. Approvals: IECEx 1. Application:Self-regulating heating cable provides a safe, reliable heat for freeze protection of pipes, valves,tanks and other applications. 2.GBW(I):High temperature and wattage. Maximum maintain temperature rating of 275F Degree(135Celsius Degree) Maximum bearing temperature rating of 338F Degree( 170Celsius Degree) Minimun operating temperature rating of 40F Degree(-40 Celsius Degree) 3.Power output at 10 Celsius degree(W/ft):10,12,15,18 Voltage:AC220V/AC110V/AC36V/AC24V 4.Dimensions(mm): common cable(width8 10mm,thickness4 5mm); enhanced cable(width12 16mm;thickness5 7)5.Copper buss wire:57/0.3, 7/0.6, 19/0.23, 19/0.3, 37/0.3.6.Optional jacket: PE, PVC, FRP,Fluoroplastics7.Energy efficient:Self-regulating heating cable uses less energy when heat is required.8. Easy to install: Self-regulating heating cable can be cut any length up to maximum circuit length in the field. It is quick and simple to install. And require no special or tools. Termination, splicing and power connection components are all provided in convenient kits.9. Less maintenance expense, and less downtime GBW heating cable can be.10.Certification meets for the markets demands.11.It is one of the company drafting the National Standard of the Self-Regulating Heating cable.Zhejiang Hua Yuan Electric Heat Co., Ltd founded in 1995.It is a high-tech enterprise specialized in the R & D and manufacture of PPTC(polymeric positive temperature coefficient)material and series of warming floor,heating cable,tubing bundle, resettable fuse, electric dryer.It is one of the company drafting the National Standard of the Self-Regulating Heating Belt. It located in Fuyang of Zhejiang provine,close to the beautiful Fuchun River.The product is suitable for industrial electronics, telecommunications, automotive electronics, electric power, chemical , petroleum,pulp and paper, pharmaceuticals and environmental protection industry and construction. It is certified GB/T19001-2000-ISO9001: 2000 quality management system, GB/T24001-2004-ISO14001 environmental quality management system, GB/T28001-2001 occupational health management system; international CE, ROTH (EU directive), CSA, EMF,IECEX certification.
